• Ordinary right hand lay
  • Stainless

Design: Cross lay right-handed.

  • Rope construction: 7x19 stainless steel wire rope.
  • Material: AISI 316/1570 N/mm²

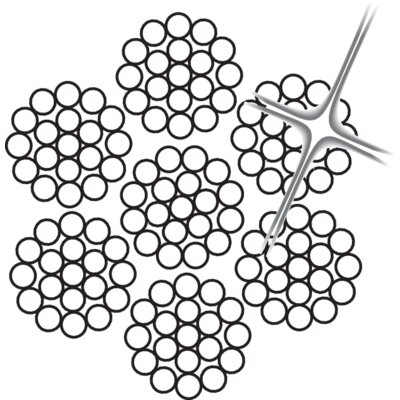

    Stainless steel 6x19M-WSC AISI 316 wire rope core structure
    Select a row from the table below, then click the add to quote button
    Rope diameter
    mm
    Min. breaking force
    kN
    1570 N/mm²
    Weight
    kg/100m
    3 4,66 3,42
    4 8,34 6,09
    5 13 9,52
    6 18,7 13,8
    8 33,3 24,3
    10 52,1 38,1
    12 75 54,8
    14 102 76,4
    16 133 97
