Crosby

This clutch performs a function similar to that of the KSC-N, but requires seperate suspension on the master or auxiliary link using a kupler and three links of chain.

  • Material: Alloy Steel.
  • Marking: Manufacturer's symbol and Grade.
  • Safety factor: 4:1
  • Grade: 10
KSC Shortclutch
KSC Shortening Clutch in User

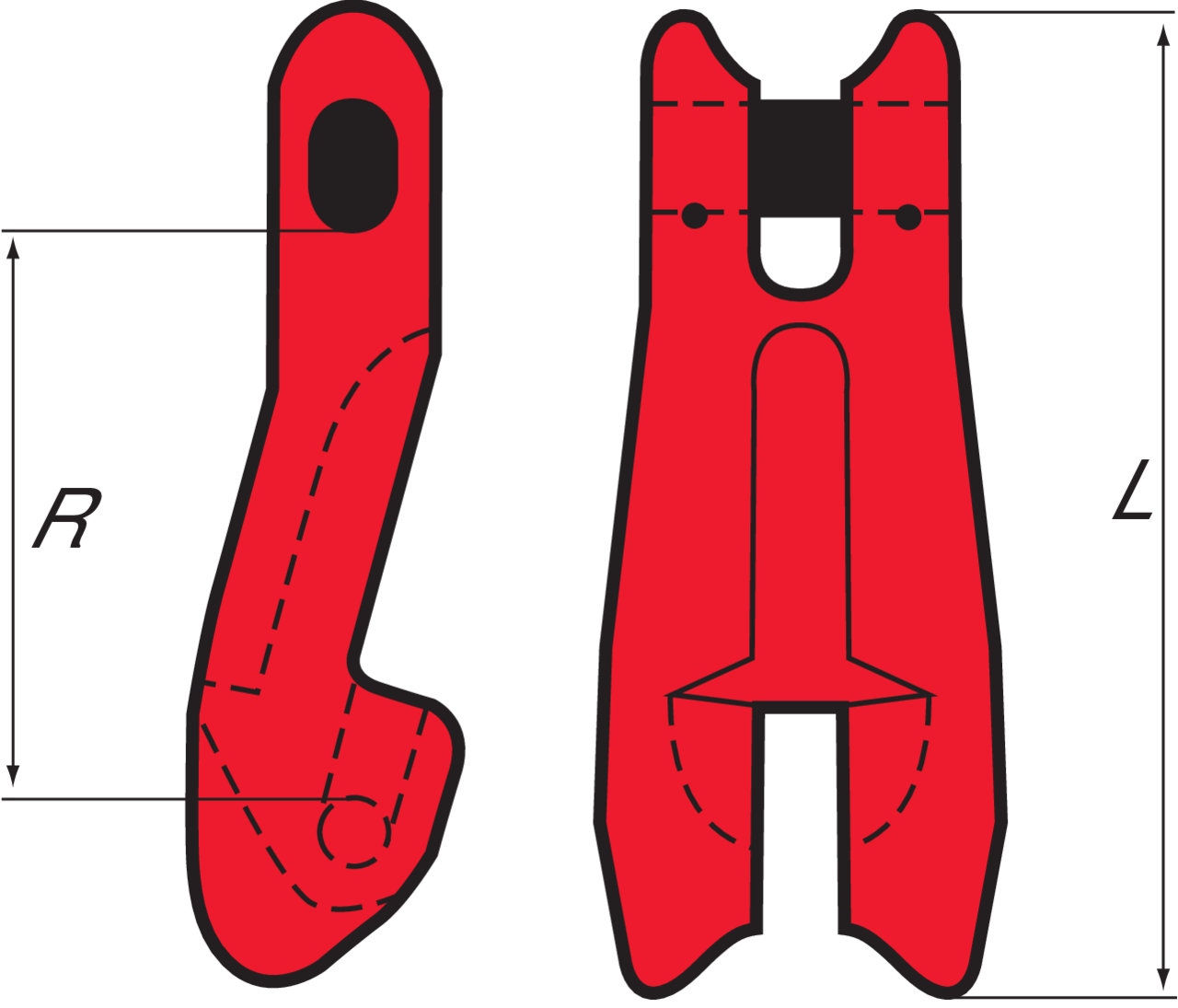

KSC streg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
L
mm
R
mm
Weight
kg
CAD
11.212780761 KSC7 2 98 60 0,37
11.212780770 KSC10 4 132 84 1
11.212780789 KSC13 6,7 171 108 1,89
11.212780798 KSC16 10 213 132 3,42
11.212780805 KSC23 21 308 190 10,02
11.212780814 KSC26 27 360 226 15,39
11.212780823 KSC32 31,5 448 310 29
