The unique component for leg length adjustment is a major feature of the KUPLEX system. It caters for loads of irregular shape or for a general lack of headroom and allows safe leg length adjustment of any number of legswith the load remaining fully in line. The cluch can be mounted directly to the masterlink and chain so no extra couplers and chainlinks are needed.

  • Material: Alloy Steel.
  • Marking: Manufacturer's symbol and Grade.
  • Safety factor: 4:1
  • Grade: 10
KSCN shortening clutch
Kuplex KSC N in use

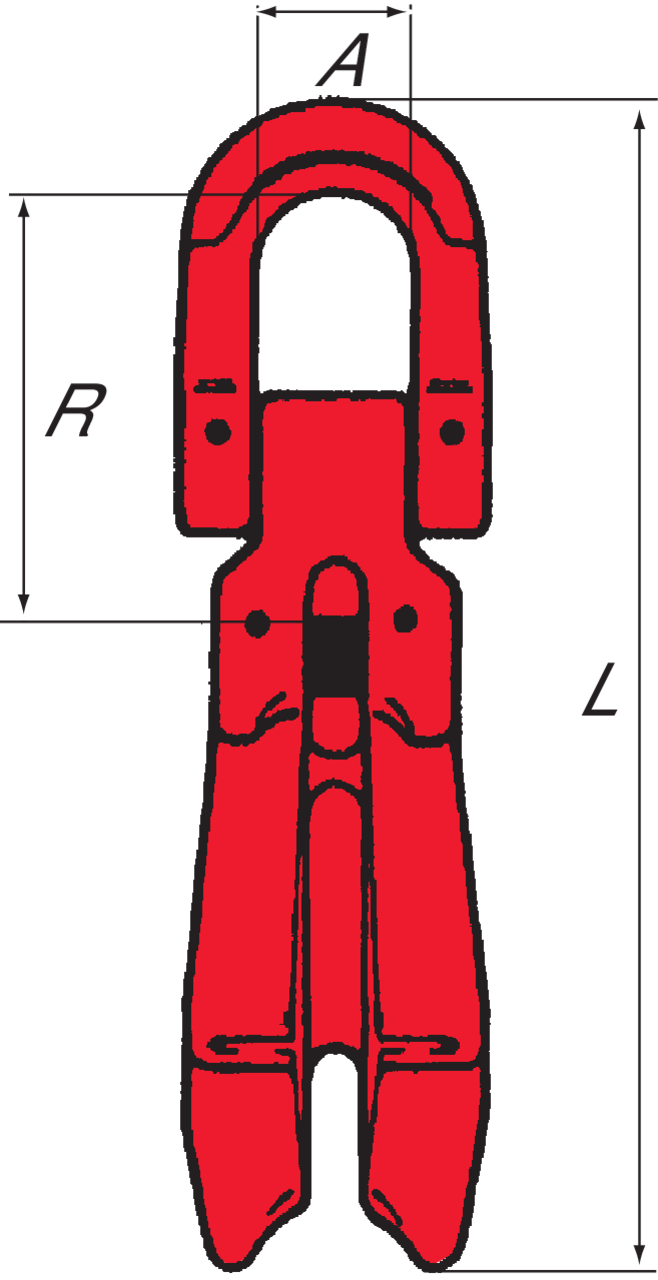

KSC N streg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
11.212780716 KSC7N 2 161 60 26 0,53 -
11.212780725 KSC10N 4 211 73 36 1,28 -
11.212780734 KSC13N 6,7 272 95 46 2,7 -
11.212780743 KSC16N 10 360 118 56 5,26 -
11.212780752 KSC19N 14 427 134 68 9,87 -
