General: Puller Sets model HP

Features and benefits:
- Adjustable for broad range of pulleys
- Compact and lightweight
- Usable in all positions

Available on request:
Cylinders manufactured in conformity with customer specifications

Product Picture 1
Product Picture 2

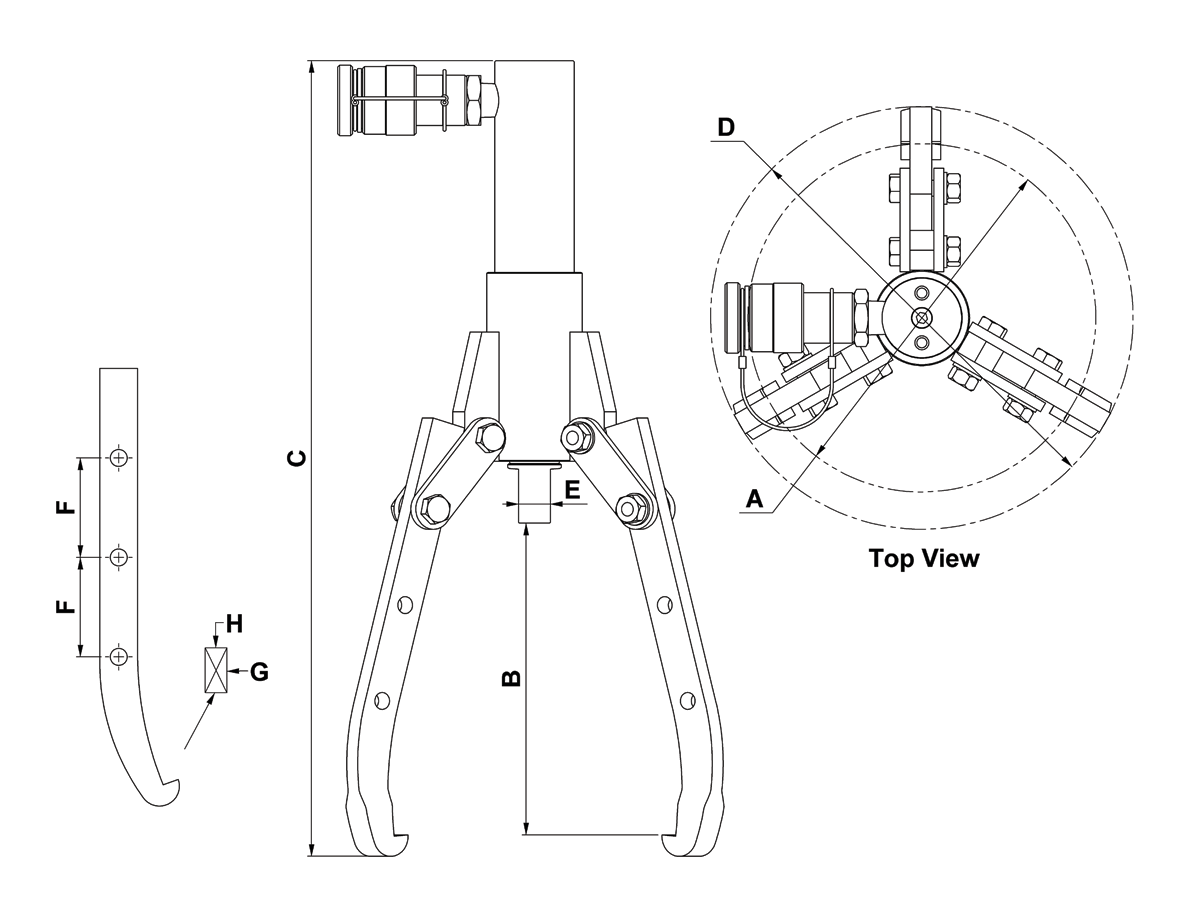

Drawing puller set
Select a row from the table below, then click the add to quote button
Model connection return type required cylinder weigth, excl. cylinder kg A min
mm
A max
mm
B min
mm
B max
mm
C max. C min.
mm
E
mm
F
mm
G
mm
H
mm
Weight
kg
CAD
HP 5 M A 118 spring HGC 5 S 12.5 2,3 30 175 57 157 400 213 16 50 20 7 4,1
HP 10 A 118 spring HCG 10 S 15 8,4 50 157 321 622 417 19 82 25 15 13
HP 17 A 118 spring HHJ 17 S 5 18,5 80 390 10 240 950 490 115 32 18 27,5
HP 30 A 118 spring HHJ 30 S 7.5 36,5 100 485 60 310 1 200 630 125 40 22 51

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
