Kuplex Master Link Crosby Litalink KMML

Crosby

A cost effective alternative to KM/KAL assembly for three leg and four leg slings designed for use only under the uniform load method of working load rating for general use.

  • Material: Alloy Steel.
  • Marking: According to standard
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10
KMML Link Kuplex Master Link Crosby Litalink KMML
KMML Link

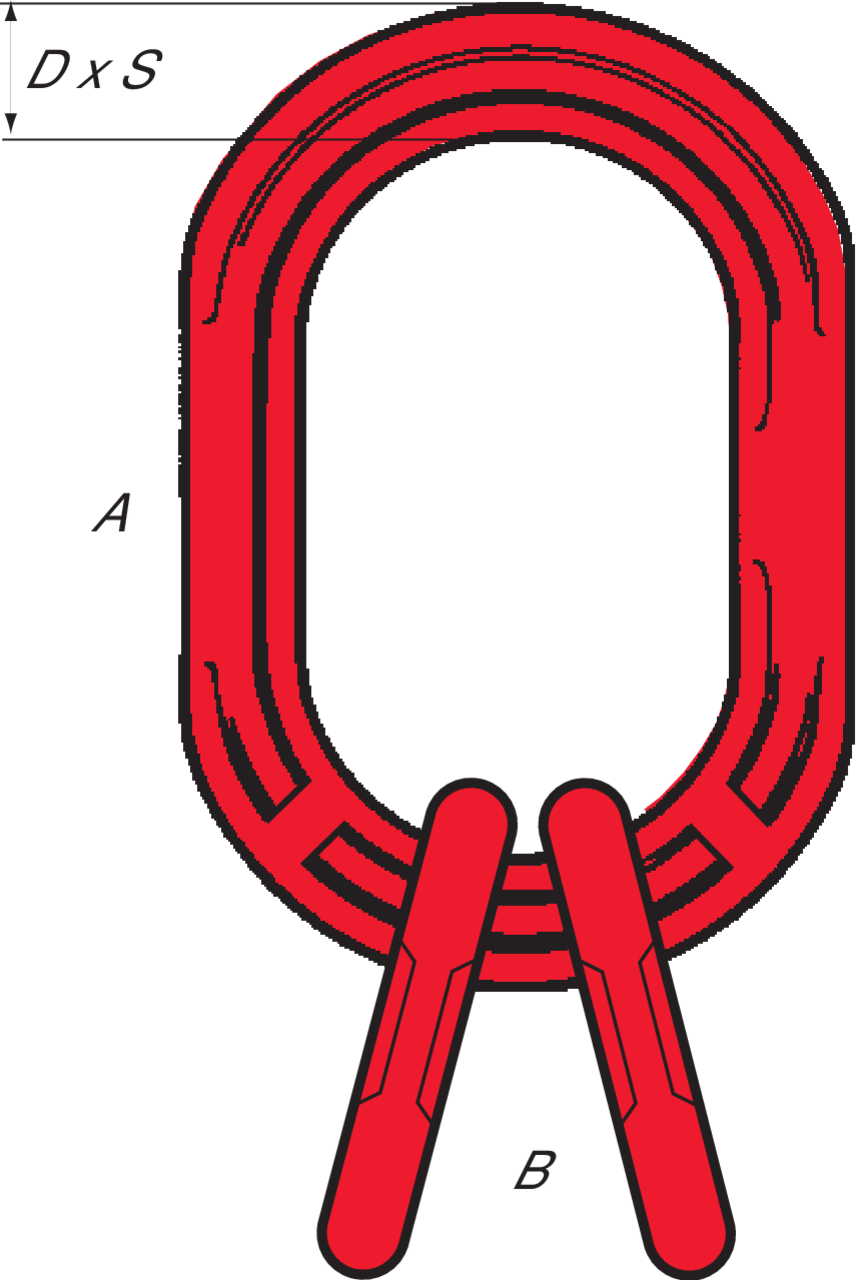

KMML streg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton		 Link A
mm		 Link B
mm		 Section D x S
mm		 B ø Weight
kg		 CAD
11.022780306 KMML7 4,2 152 x 76 63 x 34 22 x 14 13 mm 1,15
11.022780315 KMML10 8,4 178 x 108 86 x 44 30 x 20 20 mm 2,9
11.022780324 KMML13 14 228 x 127 113 x 70 40 x 27 26 mm 6,18
11.022780333 KMLL16 21,2 254 x 140 135 x 70 45 x 28 32.5 mm 10,76
11.022780342 KMLL19 30 305 x 171 155 x 85 53 x 36 38 mm 20
11.022780351 KMLL23 44 305 x 203 175 x 105 69 x 40 47 mm 35
11.022780360 KMLL26 57 340 x 210 220 x 135 74 x 48 55 mm 48

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
