Crosby

The flexible link for chain connection and suitable for making endless slings.

  • Material: Alloy Steel.
  • Marking: According to standard, Manufacturer's symbol and Grade.
  • Standard: EN 1677-1
  • Safety factor: 4:1.
  • Grade: 8
KJ Connector

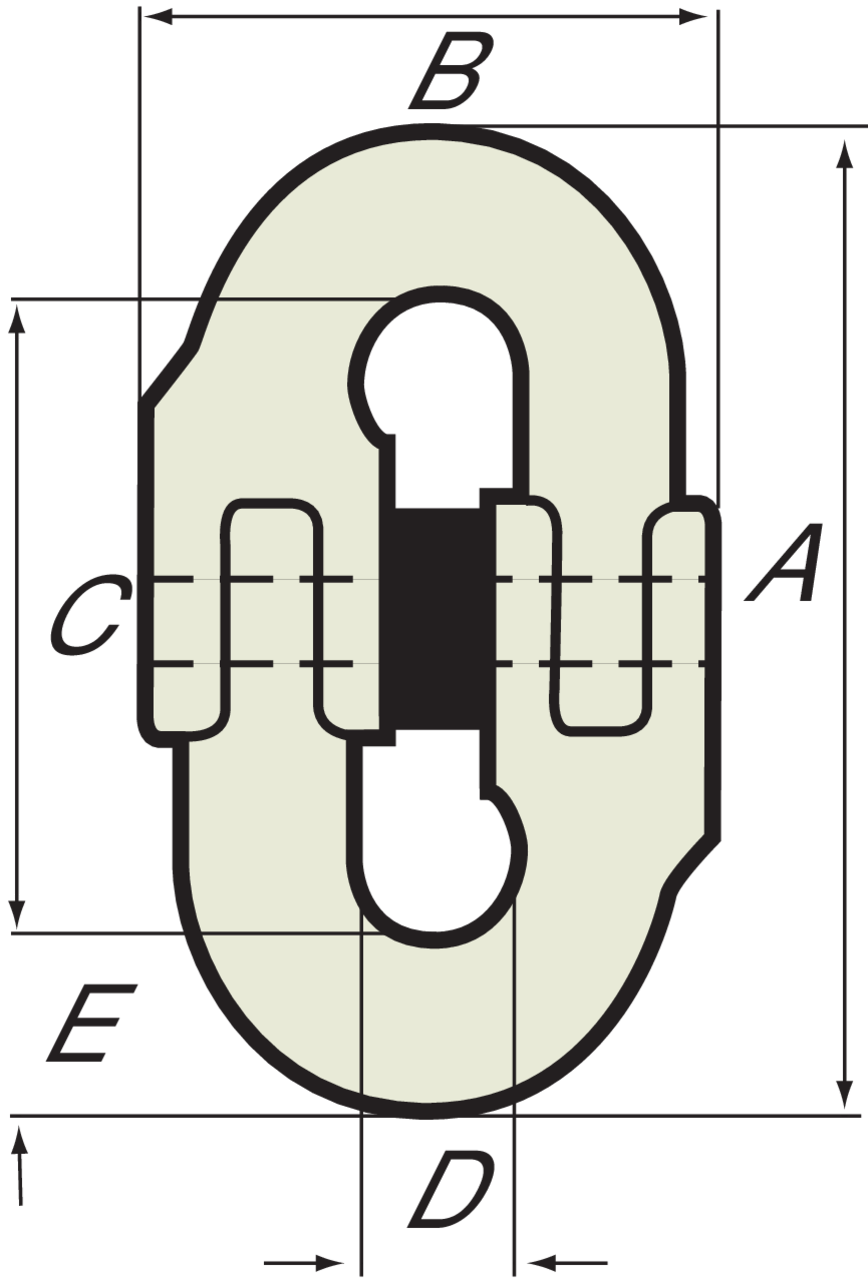

KJ Connector streg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
A
mm
B
mm
C
mm
D
mm
E
mm
Weight
kg
11.342780663 KJ7 1,5 56 34 41 8 7,5 0,09
11.342780672 KJ10 3,2 73 45 51 11,5 11 0,27
11.342780681 KJ13 5,3 94 61 65 14,7 14 0,44
11.342780690 KJ16 8 120 75 84 19,1 18 0,83
11.342780707 KJ19 11,2 142 90 100 22,9 21 1,42
