Kuplex Shackle Crosby KDL

Crosby

This shackle has a wide jaw and attaches directly to the chain. Complete with bolt, hexagon nut and cotter pin.

  • Material: Alloy Steel.
  • Marking: Manufacturer's symbol and Grade.
  • Safety factor: 4:1
  • Grade: 10

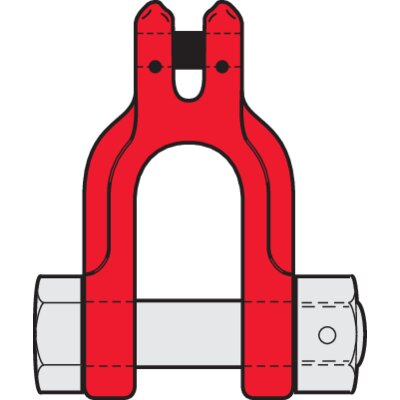

ASSEMBLY COL. 5
KDL streg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton		 A
mm		 B
mm		 C
mm		 R
mm		 D
mm		 Weight
kg		 CAD
11.392781314 KDL7N 2 48 65 35 71 19 0,71 -
11.392781323 KDL10N 4 74 83 44 104 22 1,36 -
11.392781332 KDL13N 6,7 98 109 57 136 29 3,02 -
11.392781341 KDL16N 10 122 140 73 173 35 6,18 -
11.392781350 KDL19N 14 145 162 86 203 44 10,62 -
