All Safety Hooks in the KHX series are designed so the latch cannot open under load and requires pressure on the trigger to release the hook when the load is grounded.
A variant on KHX C with eye instead of clevis.

  • Material: Alloy Steel.
  • Marking: Manufacturer's symbol and Grade.
  • Safety factor: 4:1.
  • Grade: 10

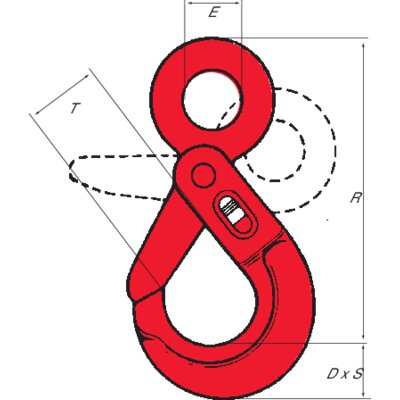

Safety Hook KHX E
Select a row from the table below, then click the add to quote button
Part Code Code WLL
11.1627811118 KHX7E 2 0,85
11.1627811127 KHX10E 4 1,15
11.1627811136 KHX13E 6,7 3,06
11.1627811145 KHX16E 10 5,24
11.1627811154 KHX19E 14 9,5
11.1627811163 KHX23E 21 13,9
