Kuplex Narrow Jaw Shackle Crosby KDN

Crosby

Similar to KDL series, but for applications calling for a narrower jaw.

  • Material: Alloy Steel.
  • Marking: According to standard, Manufacturer's symbol and Grade.
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10

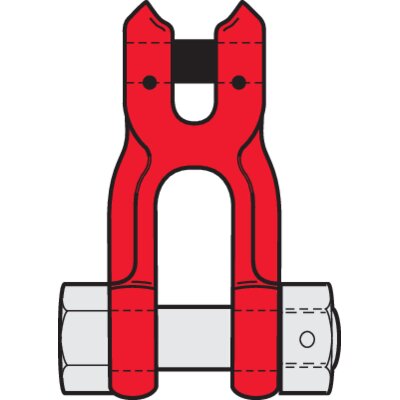

ASSEMBLY COL. 8 Kuplex Narrow Jaw Shackle Crosby KDN
ASSEMBLY COL. 8
KDN streg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton		 A
mm		 B
mm		 C
mm		 R
mm		 D
mm		 Weight
kg		 CAD
11.392781369 KDN7N 2 36 42 20 57 14 0,26 -
11.392781378 KDN10N 4 53 58 28 83 20 0,85 -
11.392781387 KDN13N 6,7 72 74 35 106 24 1,68 -
11.392781396 KDN16N 10 83 90 44 127 30 3,14

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
