Home / Products / Chains & components / Chain hooks / Kuplex C hook KC Crosby

The profile of this hook is designed to prevent fouling of the tip of the hook on obstructions such as scaffolding.

Material: Alloy Steel.
Marking: According to standard, Manufacturer's symbol and Grade.
Standard: EN 1677-1

Safety factor: 4:1.
Grade: 10

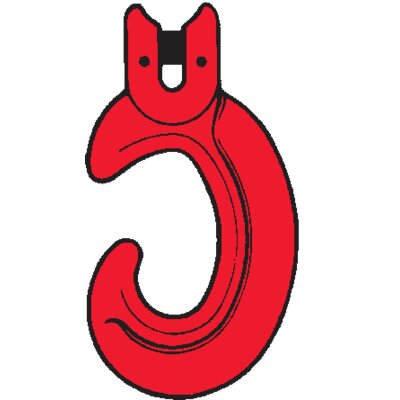

Kuplex C hook KC Crosby

Select a row from the table below, then click the add to quote button

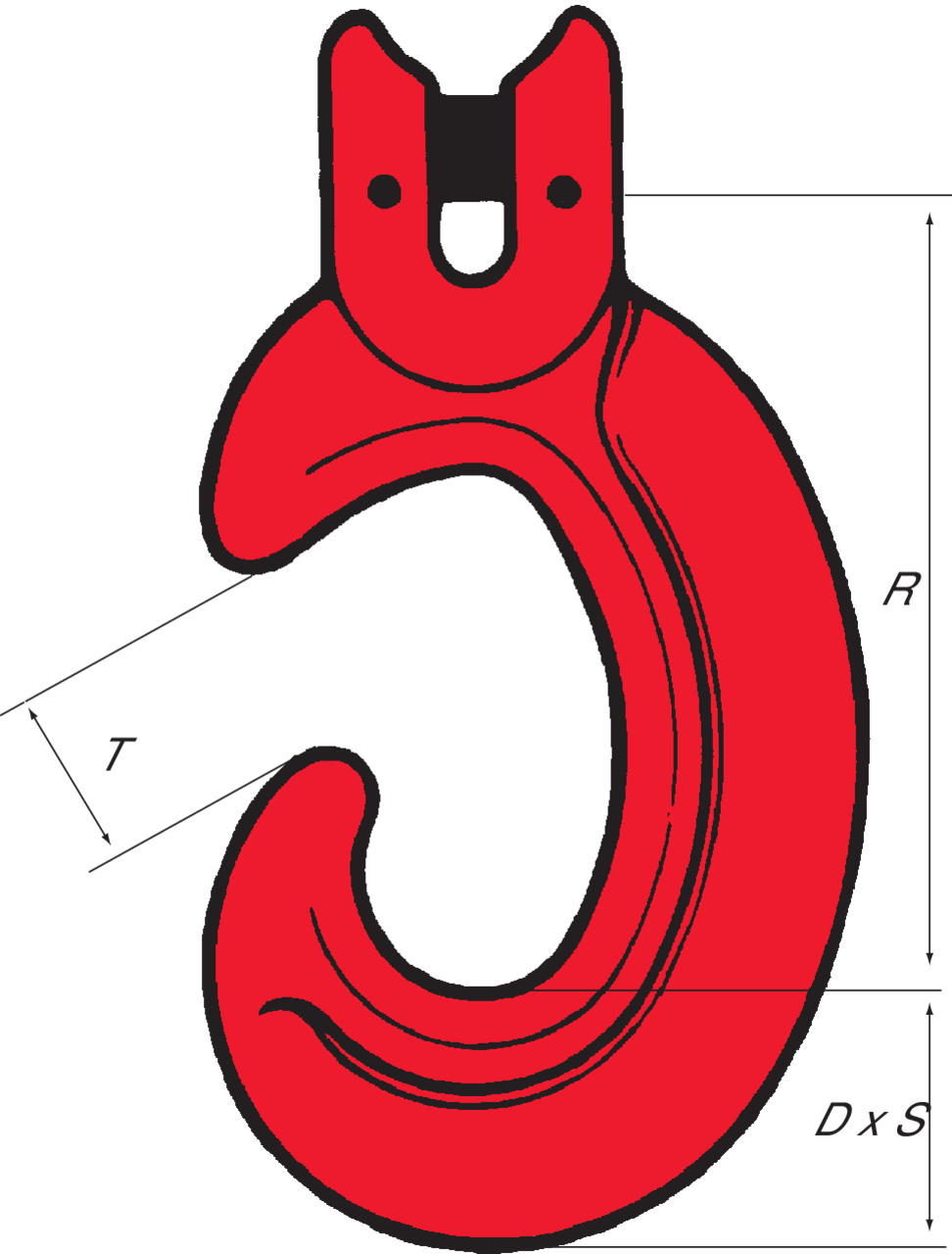

Part Code	Code	WLL ton	R mm	D mm	S mm	T mm	Weight kg
11.272781207	KC7N	2	90	27	19	20	0,45
11.272781216	KC10N	4	127	38	27	28	1,26
11.272781225	KC13N	6,7	165	49	36	39	2,78
11.272781234	KC16N	10	203	60	43	45	5,16
11.272781243	KC19N	14	242	71	52	55	8,83
