All Kuplex chain meets the dimensional requirements of BS EN 818-2 and ISO 3076. It is marked Kuplex 8 or 10 at each twentieth link or 1 metre whichever is the lesser distance.

Single link samples are taken from a lot size of 200m and bent to a minimum deflection f, as specified in the table above. Following removal of the force, the link is examined by a competent person. The link has to withstand the specified deflection for that diameter without any visible defects.

Tensile Test
Samples of chain as specified above, and in the finished condition, are subjected to a static tensile test and have to meet the minimum breaking force requirements as stated in the adjacent table, with a total ultimate elongation of not less than 20%.

Parsons Chain Routine Component Sampling
All Kuplex components are routinely verified with tensile and fatigue testing. This is a Parsons Chain company internal specification, above and beyond any current National or International Standards requirement.

    • Grade: 10

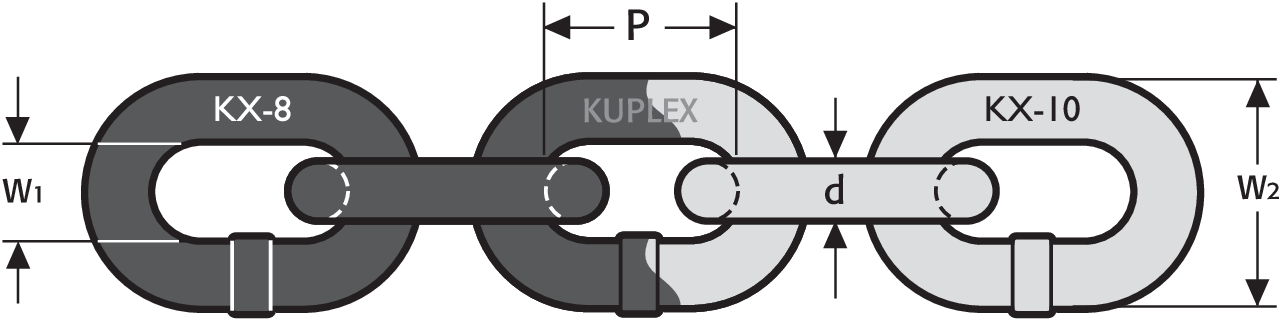

    Chainsize
    Chainsize
    Select a row from the table below, then click the add to quote button
    Chain diameter
    mm
    Bend deflection f min.
    mm
    Number of Samples per 200 m LOT CAD
    7 5,6 2 -
    8 6,4 2 -
    10 8 2 -
    13 10 2 -
    16 13 2 -
    19 15 1 -
    23 18 1 -
    26 21 1 -
    32 26 1 -

    Download CAD

    Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

    To download CAD files, you must provide a valid e-mail address

    Fetching the CAD file...

    Test Requirements and Working Load Limits - Kuplex Grade 8 Chain and Components

    Size
    Breaking force min
    Manufacturing proof force
    Working load limit
    Mean stress at breaking force N/mm2 Factor 4
    Mean stress at proof force N/mm2 Factor 2.5
    Mean stress at WLL Factor 1
    mm
    kN
    kN
    Tonnes



    7
    61,6
    38,5
    1,5
    800
    500
    200
    7
    61.6
    38.5
    1.5



    8
    80,6
    50,3
    2



    10
    126
    78.5
    3.15



    13
    214
    133
    5.3



    16
    322
    201
    8



    19
    454
    284
    11.2



    23
    666
    415
    16



    26
    850
    531
    21.2



    32
    1,290
    804
    31.5



    KUPLEX GRADE 8 CHAIN IS COLOUR CODED BLACK









    Test Requirements and Working Load Limits - Kuplex Grade 10 Chain and Components

    Size
    Breaking force min.
    Manufacturing proof force
    Working load limit
    Mean stress at breaking force N/mm2 Factor 4
    Mean stress at proof force N/mm2 Factor 2.5
    Mean stress at WLL Factor 1
    mm
    kN
    kN
    Tonnes



    7
    77
    49
    2
    1000
    625
    250
    10
    158
    98
    4



    13
    266
    166
    6.7



    16
    402
    251
    10



    19
    567
    354
    14



    23
    831
    519
    21



    26
    1,062
    664
    27



    32
    1,609
    1,005
    40



    KUPLEX GRADE 10 CHAIN IS COLOUR CODED GOLD
